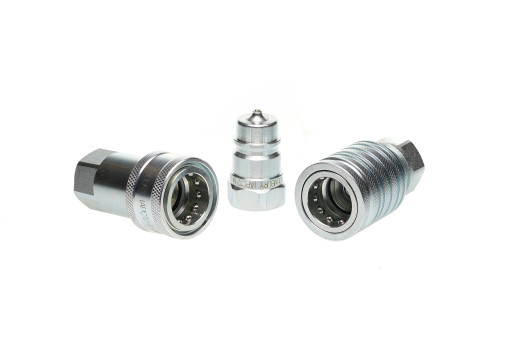

IAPC SERIES
Connect under pressure ISO A couplings made to the ISO 7241:2014 Series A Standard
Holmbury’s IAPC Series ISO A couplings incorporate a pressure relief mechanism that enable them to be connected under pressure by hand.
FEATURES
- Connects with up to 250 bar (3675 psi) residual pressure (If both male and female are IAPC couplings)
- Poppet valves have balanced springs
- Locking ball system allows quick connection
- Bidirectional flow
CONSTRUCTION
- Female half available in either a ‘Pull Break’ or ‘Push Pull’ design (See drawing for differentiation)
- Carbon steel with trivalent plating
- Fitted with Nitrile seals
ACCESSORIES
- Dust caps and plugs are available for the IAPC Series
APPLICATIONS
- Agricultural
- Mobile
- Construction
00
00
00
1200
2480F
2480F
NITRILE
VITON®
VITON®
-200C
-40F
1200C
2480F
2480F
EPDM
KALREZ®
-250C
-130F
-130F
2000C
3920F
3920F
VITON®
NITRILE
NITRILE
-400C
-400F
-400F
3000C</br/>
5720F
KALREZ®
EPDM
EPDM
-500C
-580F
-580F
| ABBREVIATION | TRADE NAME | CHEMICAL NAME | MIN TEMP. | MAX TEMP. |
|---|---|---|---|---|
| NBR XNBR | Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® | Nitrile Butadiene Rubber Carboxylated Nitrile Rubber | -40°C (-40°F) | 106°C (223°F) |
| FKM (FPM) | Dai-el®, Fluorel®, Tecnoflon®, Viton® | Fluoro-elastomer Rubber | -20°C (-4°F) | 200°C (392°F) |
| EPR EPDM | Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® | Ethylene Propylene Copolymer Ethylene Propylene Terpolymer | -50°C (-58°F) | 120°C (248°F) |
| FVMQ | Silastic 1S®, FSE® | Fluorosilicone Rubber | -65°C (-85°F) | 170°C (338°F) |
| FFKM | Perlast®, Kalrez®, Chemraz®, Kaflon® | Perfluoroelastomer | -25°C (-13°F) | 300°C (572°F) |
